Name: IRLHS6342TRPBF
Brand: Infineon Technologies
SKU: IRLHS6342TRPBF
Price: 0.70 USD
Availability: InStock

REF: IRLHS6342TRPBF Infineon Technologies

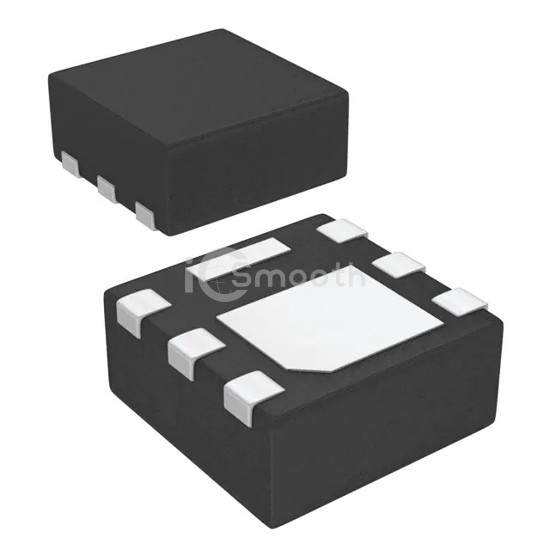

IRLHS6342TRPBF

Infineon Technologies

MOSFET N-CH 30V 8.7A/19A 6PQFN

IRLHS6342TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 8.7A/19A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerVDFN.

Datasheet Request a Quote

In Stock: 855

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	8.7A (Ta), 19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	15.5mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1019 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-PowerVDFN
