IRLHS6242TR2PBF

In Stock: 4,085

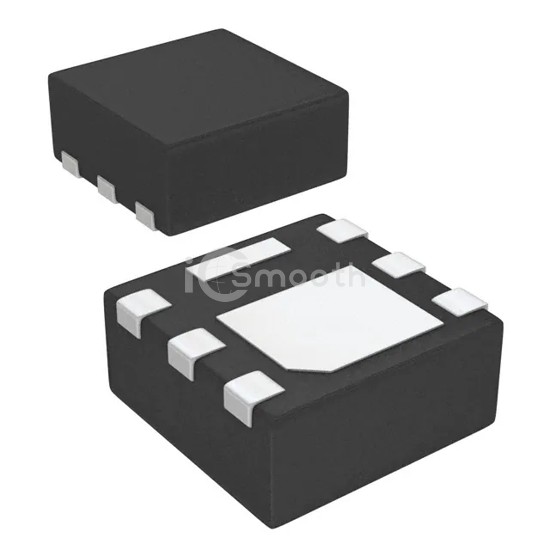

IRLHS6242TR2PBF - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IRLHS6242TR2PBF Infineon Technologies
IRLHS6242TR2PBF

Infineon Technologies

MOSFET N-CH 20V 10A PQFN

IRLHS6242TR2PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 10A PQFN. Key specifications: mounting type Surface Mount, package / case 6-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,085

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C10A (Ta), 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs11.7mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 4.5 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds1110 pF @ 10 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerVDFN
