IRLHS2242TR2PBF

In Stock: 5,385

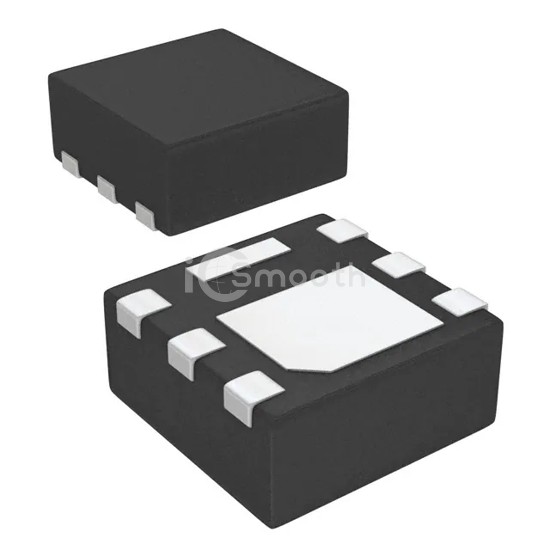

IRLHS2242TR2PBF - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IRLHS2242TR2PBF Infineon Technologies
IRLHS2242TR2PBF

Infineon Technologies

MOSFET P-CH 20V 5.8A 2X2 PQFN

IRLHS2242TR2PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 20V 5.8A 2X2 PQFN. Key specifications: mounting type Surface Mount, package / case 6-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,385

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C7.2A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs31mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds877 pF @ 10 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerVDFN
