Name: IRLH5036TR2PBF
Brand: Infineon Technologies
SKU: IRLH5036TR2PBF
Availability: InStock

REF: IRLH5036TR2PBF Infineon Technologies

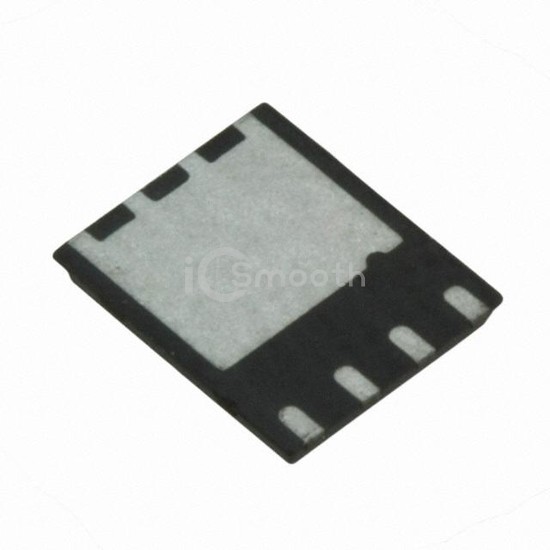

IRLH5036TR2PBF

MOSFET N-CH 60V 100A 5X6 PQFN

IRLH5036TR2PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 100A 5X6 PQFN. Key specifications: mounting type Surface Mount, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,012

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	4.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	90 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	5360 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerVDFN
