Name: IRLBL1304
Brand: Infineon Technologies
SKU: IRLBL1304
Availability: InStock

REF: IRLBL1304 Infineon Technologies

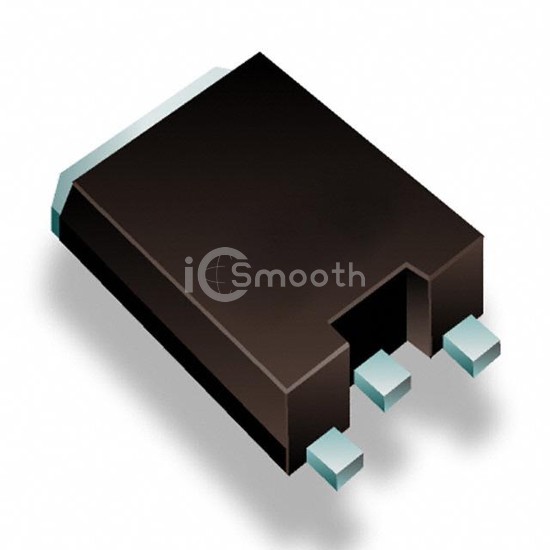

IRLBL1304

MOSFET N-CH 40V 185A SUPER D2PAK

IRLBL1304 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 185A SUPER D2PAK. Key specifications: mounting type Surface Mount, package / case Super D2-Pak.

Datasheet Request a Quote

In Stock: 4,163

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	185A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.5mOhm @ 110A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	140 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	7660 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	SUPER D2-PAK
Package / Case	Super D2-Pak
