Name: IRL80HS120
Brand: Infineon Technologies
SKU: IRL80HS120
Price: 1.34 USD
Availability: InStock

REF: IRL80HS120 Infineon Technologies

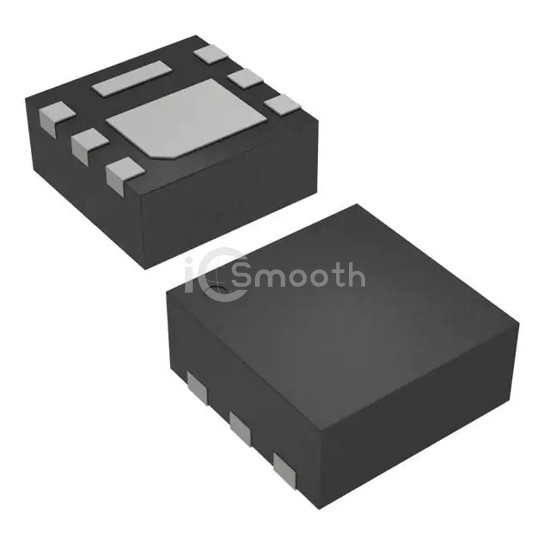

IRL80HS120

MOSFET N-CH 80V 12.5A 6PQFN

IRL80HS120 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 80V 12.5A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 6-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,581

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	12.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	32mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	2V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	540 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	11.5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-VDFN Exposed Pad
