Name: IRL6283MTRPBF
Brand: Infineon Technologies
SKU: IRL6283MTRPBF
Availability: InStock

REF: IRL6283MTRPBF Infineon Technologies

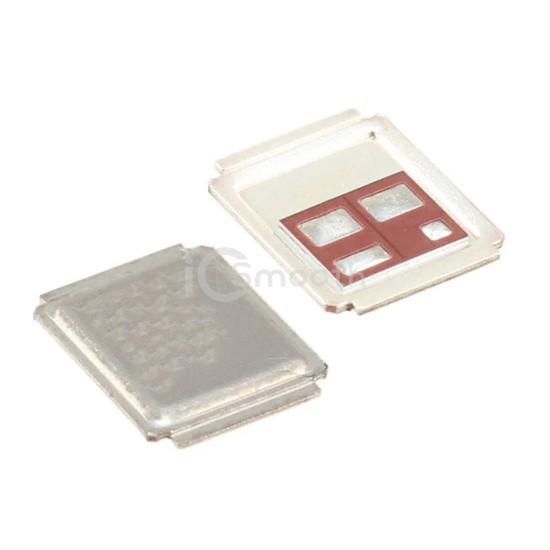

IRL6283MTRPBF

MOSFET N-CH 20V 38A DIRECTFET

IRL6283MTRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 38A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric MD.

Datasheet Request a Quote

In Stock: 7,940

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	38A (Ta), 211A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	0.75mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	1.1V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	158 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	8292 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 63W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ MD
Package / Case	DirectFET™ Isometric MD
