Name: IRFSL4410PBF
Brand: Infineon Technologies
SKU: IRFSL4410PBF
Availability: InStock

REF: IRFSL4410PBF Infineon Technologies

IRFSL4410PBF

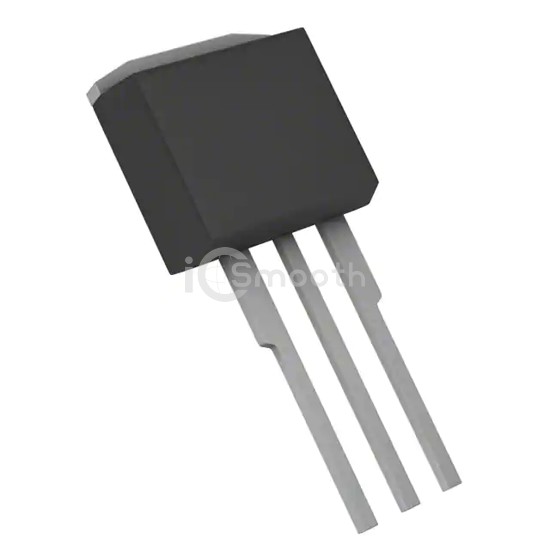

MOSFET N-CH 100V 88A TO262

IRFSL4410PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 88A TO262. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 4,989

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	88A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10mOhm @ 58A, 10V
Vgs(th) (Max) @ Id	4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	180 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5150 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	200W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
