Name: IRFSL4127PBF
Brand: Infineon Technologies
SKU: IRFSL4127PBF
Price: 4.48 USD
Availability: InStock

REF: IRFSL4127PBF Infineon Technologies

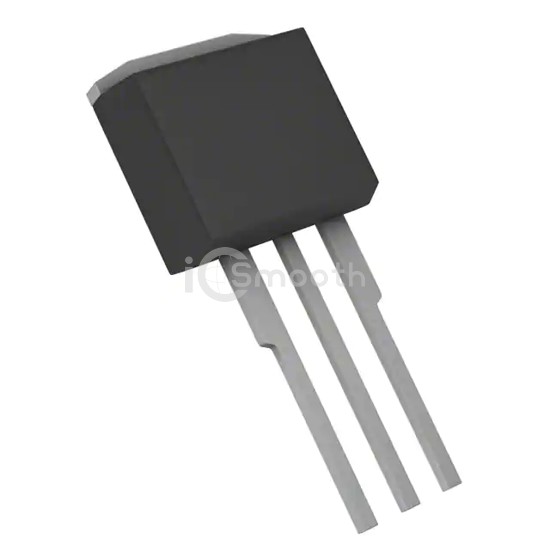

IRFSL4127PBF

Infineon Technologies

MOSFET N-CH 200V 72A TO262

IRFSL4127PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 200V 72A TO262. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 3,444

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	72A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	22mOhm @ 44A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	150 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	5380 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
