Name: IRFM460
Brand: Infineon Technologies
SKU: IRFM460
Availability: InStock

REF: IRFM460 Infineon Technologies

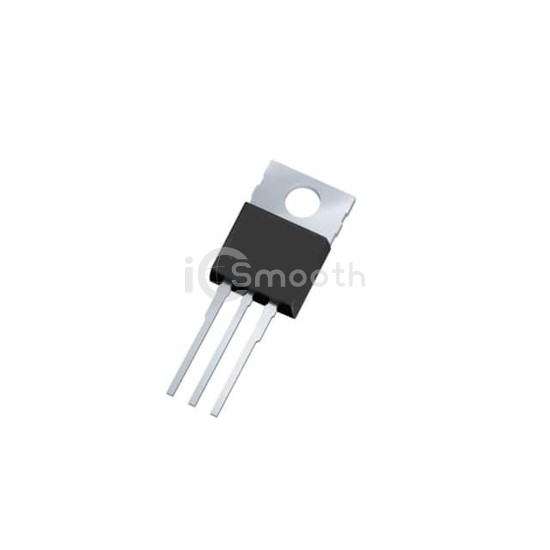

IRFM460

MOSFET N-CH 500V 19A TO254AA

IRFM460 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 500V 19A TO254AA. Key specifications: mounting type Through Hole, package / case TO-254-3, TO-254AA (Straight Leads).

Datasheet Request a Quote

In Stock: 8,073

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	270mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	190 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4300 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	250W (Tc)
Operating Temperature	-
Mounting Type	Through Hole
Supplier Device Package	TO-254AA
Package / Case	TO-254-3, TO-254AA (Straight Leads)
