Name: IRFI7440GPBF
Brand: Infineon Technologies
SKU: IRFI7440GPBF
Availability: InStock

REF: IRFI7440GPBF Infineon Technologies

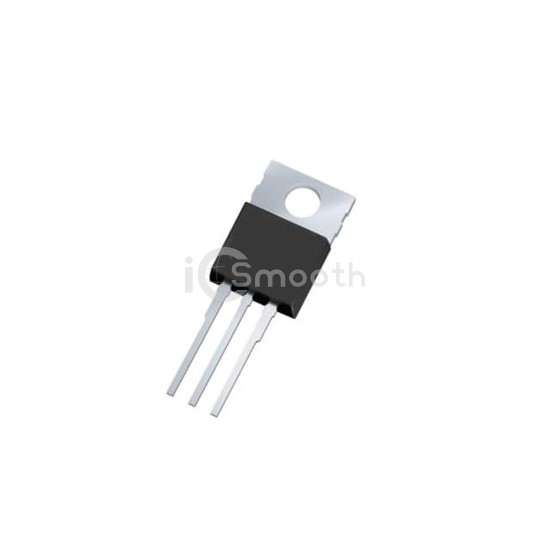

IRFI7440GPBF

MOSFET N-CH 40V 95A TO220AB FP

IRFI7440GPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 95A TO220AB FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 5,587

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	95A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 57A, 10V
Vgs(th) (Max) @ Id	3.9V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	132 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4549 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB Full-Pak
Package / Case	TO-220-3 Full Pack
