Name: IRFI4229PBF
Brand: Infineon Technologies
SKU: IRFI4229PBF
Price: 4.32 USD
Availability: InStock

REF: IRFI4229PBF Infineon Technologies

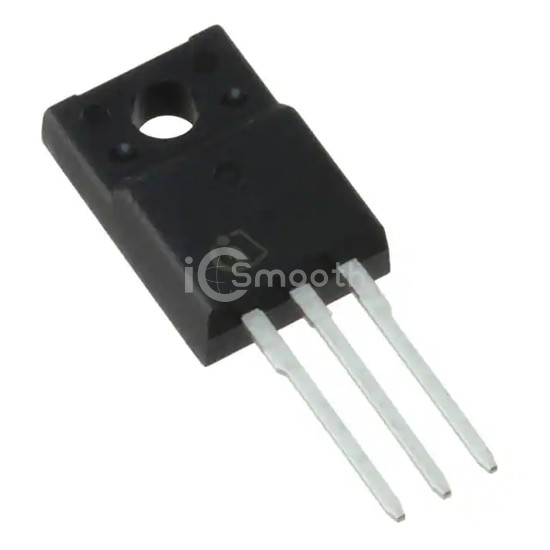

IRFI4229PBF

Infineon Technologies

MOSFET N-CH 250V 19A TO220AB

IRFI4229PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 250V 19A TO220AB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 4,452

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	46mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	110 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	4480 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	46W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
