Name: IRFHS9301TR2PBF
Brand: Infineon Technologies
SKU: IRFHS9301TR2PBF
Availability: InStock

REF: IRFHS9301TR2PBF Infineon Technologies

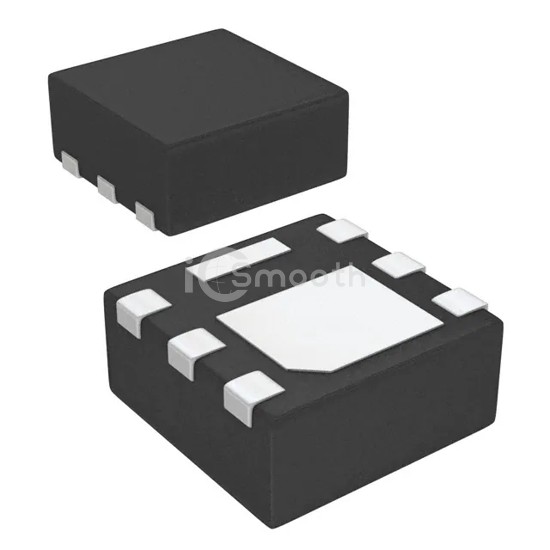

IRFHS9301TR2PBF

MOSFET P-CH 30V 6A PQFN

IRFHS9301TR2PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 6A PQFN. Key specifications: mounting type Surface Mount, package / case 6-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,694

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta), 13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	37mOhm @ 7.8A, 10V
Vgs(th) (Max) @ Id	2.4V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	580 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-PowerVDFN
