Name: IRFHS8342TRPBF
Brand: Infineon Technologies
SKU: IRFHS8342TRPBF
Price: 0.59 USD
Availability: InStock

REF: IRFHS8342TRPBF Infineon Technologies

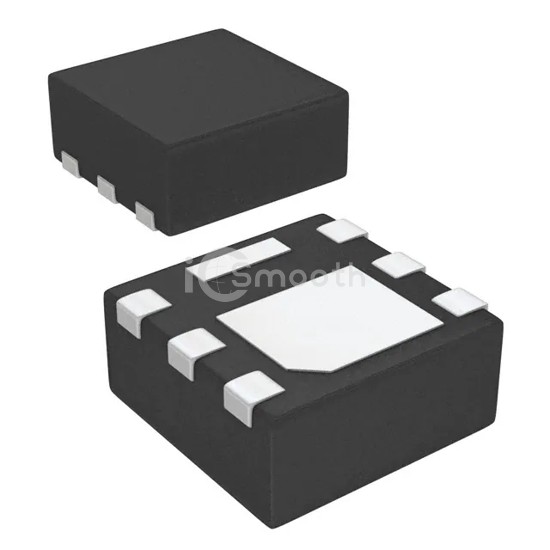

IRFHS8342TRPBF

Infineon Technologies

MOSFET N-CH 30V 8.8A/19A TSDSON

IRFHS8342TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 8.8A/19A TSDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerVDFN.

Datasheet Request a Quote

In Stock: 9,285

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	8.8A (Ta), 19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	16mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id	2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	8.7 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSDSON-6
Package / Case	6-PowerVDFN
