IRFHS8242TR2PBF

In Stock: 4,289

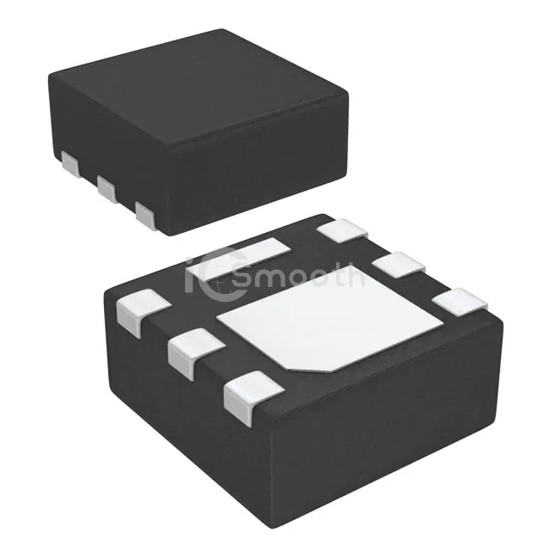

IRFHS8242TR2PBF - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IRFHS8242TR2PBF Infineon Technologies
IRFHS8242TR2PBF

Infineon Technologies

MOSFET N-CH 25V 9.9A PQFN

IRFHS8242TR2PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 25V 9.9A PQFN. Key specifications: mounting type Surface Mount, package / case 6-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,289

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C9.9A (Ta), 21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs13mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs10.4 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds653 pF @ 10 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerVDFN
