Name: IRFHM830DTRPBF
Brand: Infineon Technologies
SKU: IRFHM830DTRPBF
Availability: InStock

REF: IRFHM830DTRPBF Infineon Technologies

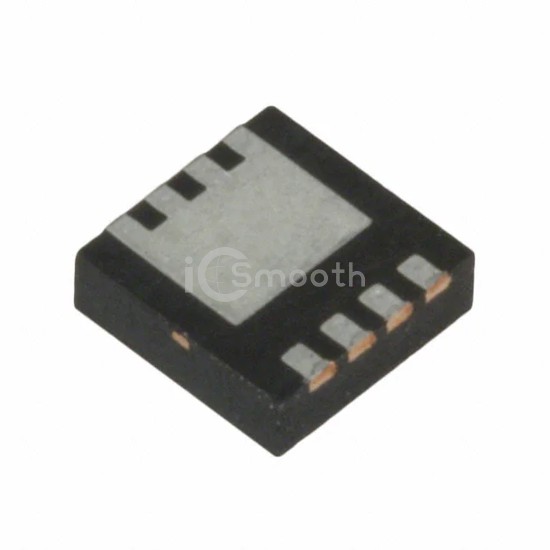

IRFHM830DTRPBF

MOSFET N-CH 30V 20A/40A PQFN

IRFHM830DTRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 20A/40A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,599

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.35V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	27 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1797 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta), 37W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (3x3)
Package / Case	8-VQFN Exposed Pad
