Name: IRFHM4234TRPBF
Brand: Infineon Technologies
SKU: IRFHM4234TRPBF
Availability: InStock

REF: IRFHM4234TRPBF Infineon Technologies

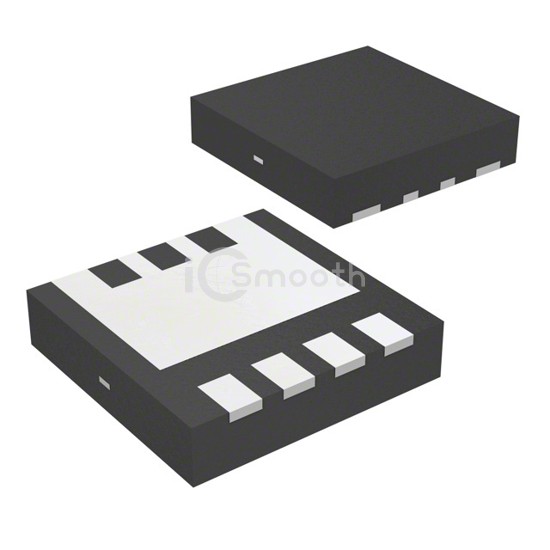

IRFHM4234TRPBF

MOSFET N-CH 25V 20A PQFN

IRFHM4234TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 25V 20A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,583

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.4mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.1V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1011 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta), 28W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	-
Package / Case	8-TQFN Exposed Pad
