Name: IRFHM4226TRPBF
Brand: Infineon Technologies
SKU: IRFHM4226TRPBF
Availability: InStock

REF: IRFHM4226TRPBF Infineon Technologies

IRFHM4226TRPBF

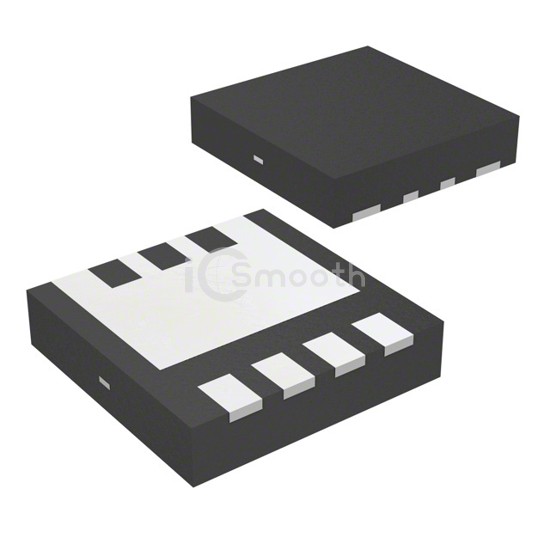

MOSFET N CH 25V 28A PQFN

IRFHM4226TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N CH 25V 28A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,538

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	28A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.2mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.1V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2000 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 39W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	-
Package / Case	8-TQFN Exposed Pad
