Name: IRFH9310TRPBF
Brand: Infineon Technologies
SKU: IRFH9310TRPBF
Price: 1.86 USD
Availability: InStock

REF: IRFH9310TRPBF Infineon Technologies

IRFH9310TRPBF

Infineon Technologies

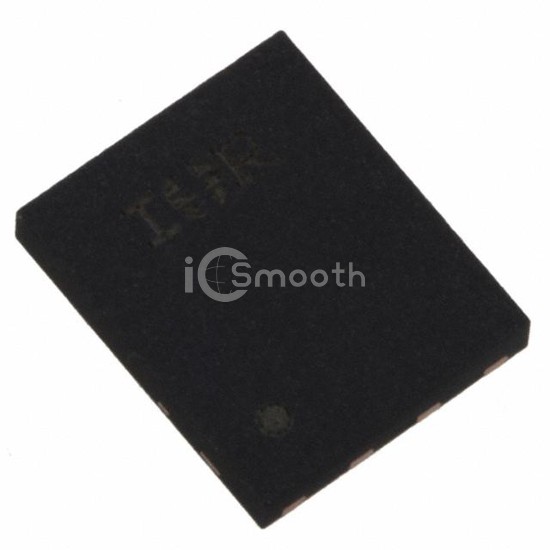

MOSFET P-CH 30V 21A/40A PQFN

IRFH9310TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 21A/40A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 9,533

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.6mOhm @ 21A, 10V
Vgs(th) (Max) @ Id	2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	58 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5250 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6)
Package / Case	8-PowerVDFN
