Name: IRFH8321TRPBF
Brand: Infineon Technologies
SKU: IRFH8321TRPBF
Price: 0.29 USD
Availability: InStock

REF: IRFH8321TRPBF Infineon Technologies

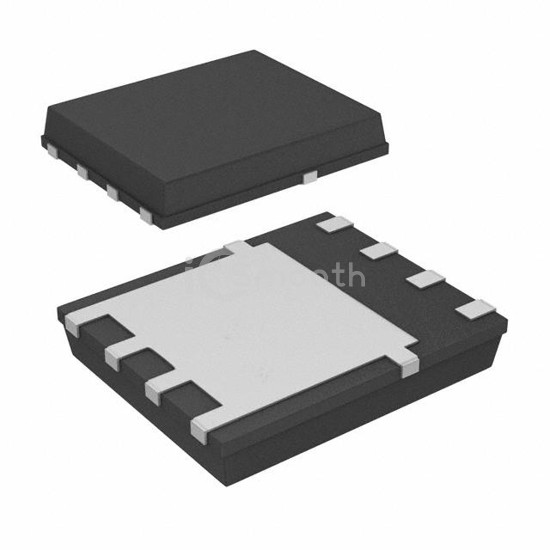

IRFH8321TRPBF

Infineon Technologies

MOSFET N CH 30V 21A PQFN5X6

IRFH8321TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N CH 30V 21A PQFN5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,860

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 83A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2600 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	3.4W (Ta), 54W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6)
Package / Case	8-TQFN Exposed Pad
