Name: IRFH8311TRPBF
Brand: Infineon Technologies
SKU: IRFH8311TRPBF
Price: 1.35 USD
Availability: InStock

REF: IRFH8311TRPBF Infineon Technologies

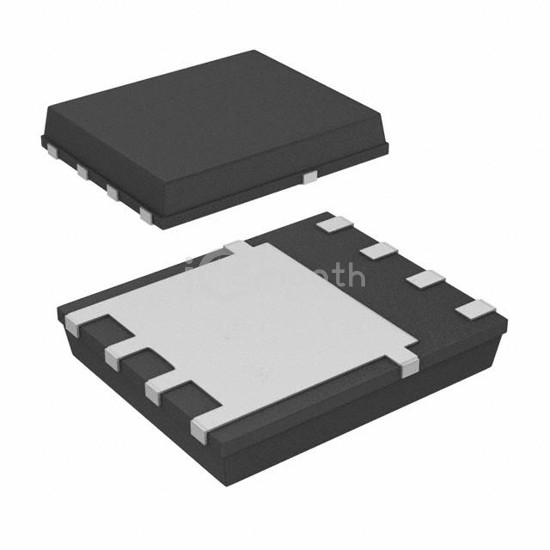

IRFH8311TRPBF

Infineon Technologies

MOSFET N CH 30V 32A PQFN5X6

IRFH8311TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N CH 30V 32A PQFN5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,234

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	32A (Ta), 169A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.1mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	66 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4960 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6)
Package / Case	8-TQFN Exposed Pad
