Name: IRFH7932TRPBF
Brand: Infineon Technologies
SKU: IRFH7932TRPBF
Price: 1.38 USD
Availability: InStock

REF: IRFH7932TRPBF Infineon Technologies

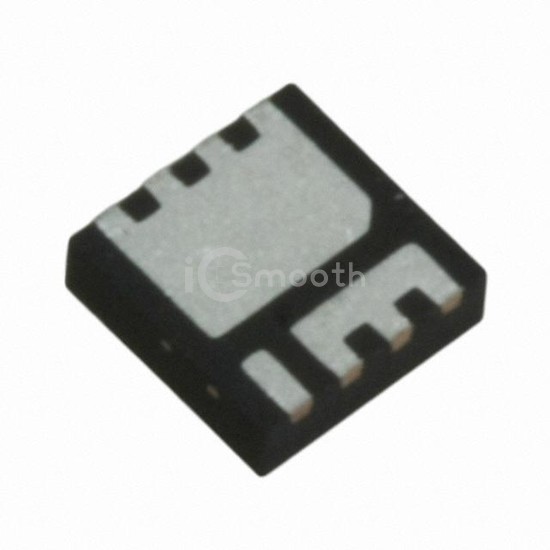

IRFH7932TRPBF

Infineon Technologies

MOSFET N-CH 30V 24A/104A PQFN

IRFH7932TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 24A/104A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 69

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 104A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.3mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4270 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6) Single Die
Package / Case	8-PowerVDFN
