Name: IRFH7885TRPBF
Brand: Infineon Technologies
SKU: IRFH7885TRPBF
Availability: InStock

REF: IRFH7885TRPBF Infineon Technologies

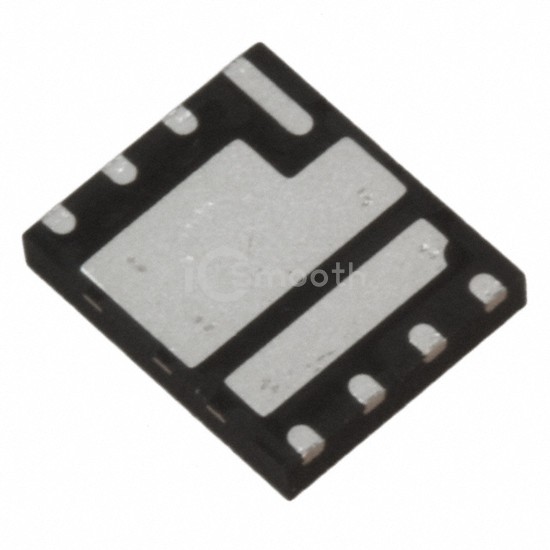

IRFH7885TRPBF

MOSFET N-CH 80V 22A 8PQFN

IRFH7885TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 80V 22A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VQFN.

Datasheet Request a Quote

In Stock: 6,832

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.6V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	54 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2311 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-VQFN
