Name: IRFH7085TRPBF
Brand: Infineon Technologies
SKU: IRFH7085TRPBF
Price: 2.15 USD
Availability: InStock

REF: IRFH7085TRPBF Infineon Technologies

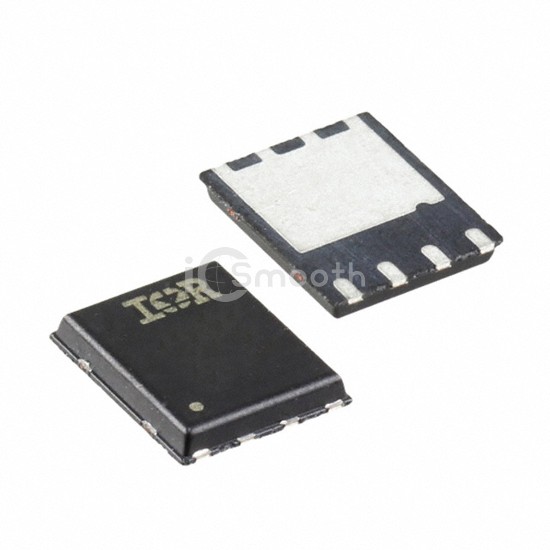

IRFH7085TRPBF

Infineon Technologies

MOSFET N-CH 60V 100A PQFN

IRFH7085TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 100A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 1,911

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	3.7V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	165 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6460 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6)
Package / Case	8-PowerVDFN
