Name: IRFH5303TRPBF
Brand: Infineon Technologies
SKU: IRFH5303TRPBF
Availability: InStock

REF: IRFH5303TRPBF Infineon Technologies

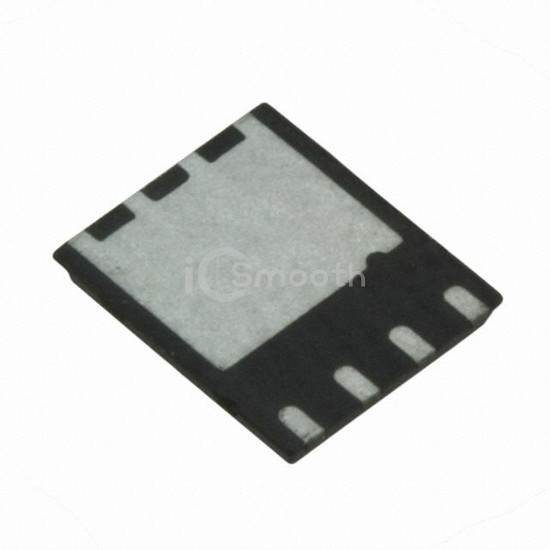

IRFH5303TRPBF

MOSFET N-CH 30V 23A/82A 8PQFN

IRFH5303TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 23A/82A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 9,193

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	23A (Ta), 82A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.2mOhm @ 49A, 10V
Vgs(th) (Max) @ Id	2.35V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	41 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2190 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 46W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerVDFN
