Name: IRFH5302TR2PBF
Brand: Infineon Technologies
SKU: IRFH5302TR2PBF
Availability: InStock

REF: IRFH5302TR2PBF Infineon Technologies

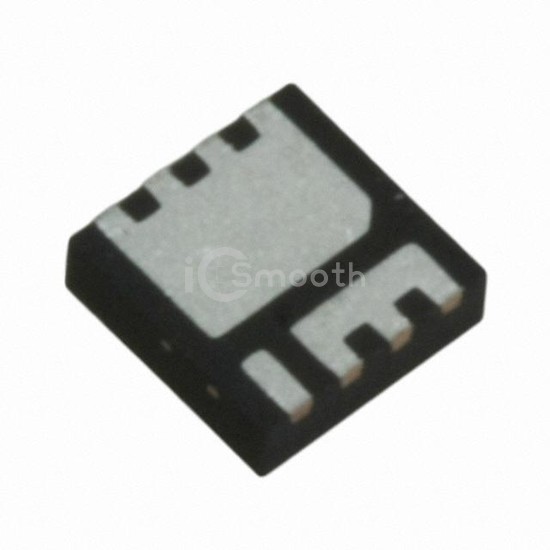

IRFH5302TR2PBF

MOSFET N-CH 30V 32A 5X6 PQFN

IRFH5302TR2PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 32A 5X6 PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,337

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	32A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	2.1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	76 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	4400 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6) Single Die
Package / Case	8-PowerVDFN
