Name: IRFH5220TRPBF
Brand: Infineon Technologies
SKU: IRFH5220TRPBF
Availability: InStock

REF: IRFH5220TRPBF Infineon Technologies

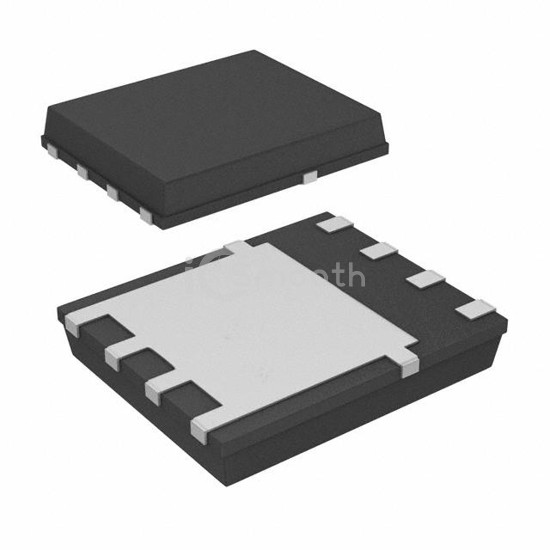

IRFH5220TRPBF

MOSFET N-CH 200V 3.8A/20A PQFN

IRFH5220TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 200V 3.8A/20A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,580

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	3.8A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	99.9mOhm @ 5.8A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1380 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 8.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6)
Package / Case	8-VQFN Exposed Pad
