Name: IRFH5207TRPBF
Brand: Infineon Technologies
SKU: IRFH5207TRPBF
Availability: InStock

REF: IRFH5207TRPBF Infineon Technologies

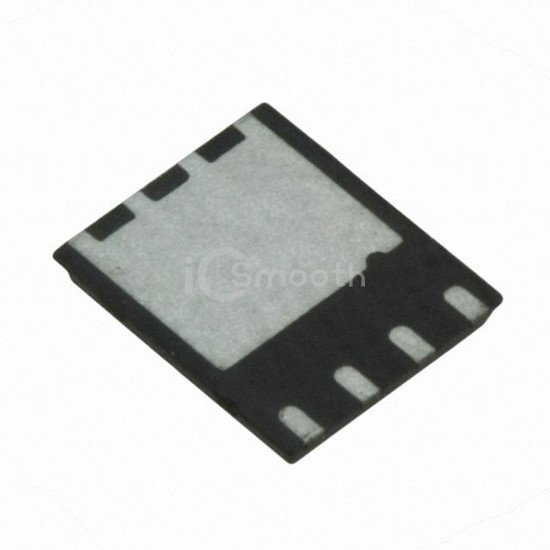

IRFH5207TRPBF

MOSFET N-CH 75V 13A/71A 8PQFN

IRFH5207TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 75V 13A/71A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,507

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 71A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	9.6mOhm @ 43A, 10V
Vgs(th) (Max) @ Id	4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2474 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 105W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerVDFN
