Name: IRFH5053TR2PBF
Brand: Infineon Technologies
SKU: IRFH5053TR2PBF
Availability: InStock

REF: IRFH5053TR2PBF Infineon Technologies

IRFH5053TR2PBF

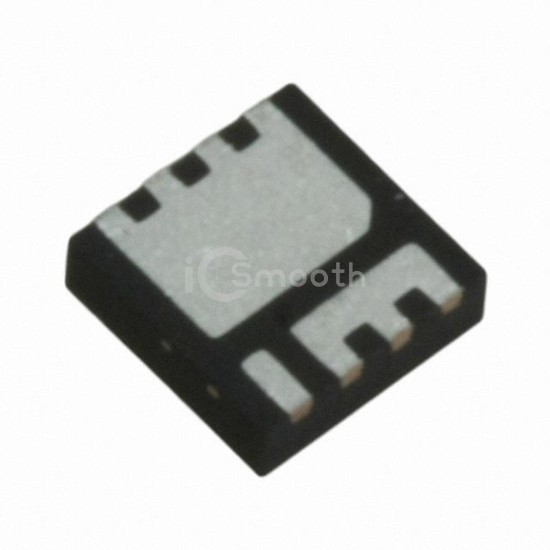

MOSFET N-CH 100V 9.3A PQFN56

IRFH5053TR2PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 9.3A PQFN56. Key specifications: mounting type Surface Mount, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,635

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	9.3A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	18mOhm @ 9.3A, 10V
Vgs(th) (Max) @ Id	4.9V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	36 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	1510 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	PQFN (5x6) Single Die
Package / Case	8-PowerVDFN
