Name: IRFH3707TRPBF
Brand: Infineon Technologies
SKU: IRFH3707TRPBF
Price: 0.60 USD
Availability: InStock

REF: IRFH3707TRPBF Infineon Technologies

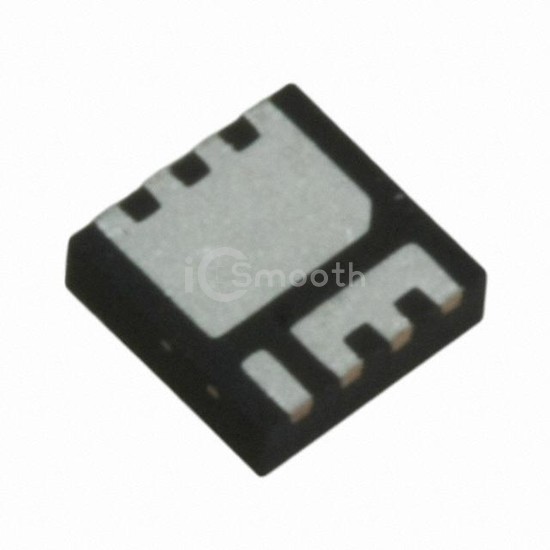

IRFH3707TRPBF

Infineon Technologies

MOSFET N-CH 30V 12A/29A 8PQFN

IRFH3707TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 12A/29A 8PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,844

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12.4mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	8.1 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	755 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3x3)
Package / Case	8-PowerVDFN
