Name: IRFBL3703
Brand: Infineon Technologies
SKU: IRFBL3703
Availability: InStock

REF: IRFBL3703 Infineon Technologies

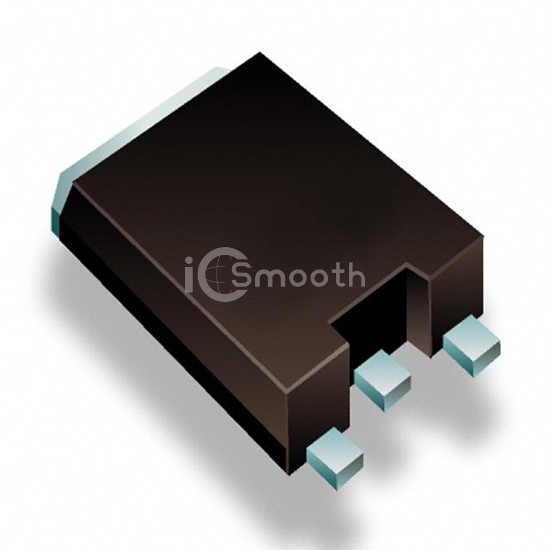

IRFBL3703

MOSFET N-CH 30V 260A SUPER D2PAK

IRFBL3703 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 260A SUPER D2PAK. Key specifications: mounting type Surface Mount, package / case Super D2-Pak.

Datasheet Request a Quote

In Stock: 7,082

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	260A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7V, 10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 76A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	209 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8250 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 300W (Tc)
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	SUPER D2-PAK
Package / Case	Super D2-Pak
