Name: IRFBA1404P
Brand: Infineon Technologies
SKU: IRFBA1404P
Availability: InStock

REF: IRFBA1404P Infineon Technologies

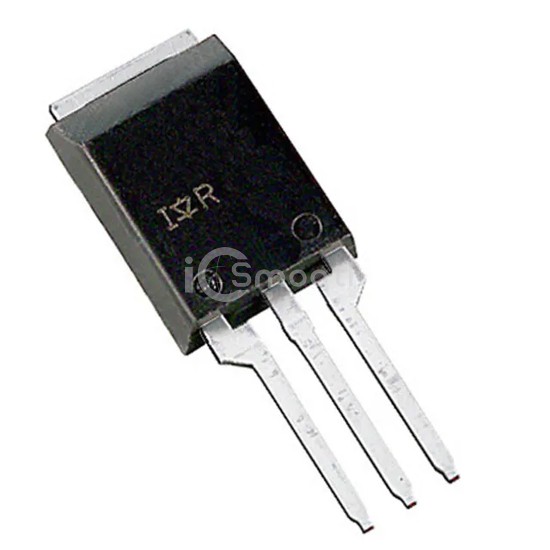

IRFBA1404P

MOSFET N-CH 40V 206A SUPER-220

IRFBA1404P is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 206A SUPER-220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-273AA.

Datasheet Request a Quote

In Stock: 6,670

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	206A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.7mOhm @ 95A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	200 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7360 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-220™ (TO-273AA)
Package / Case	TO-273AA
