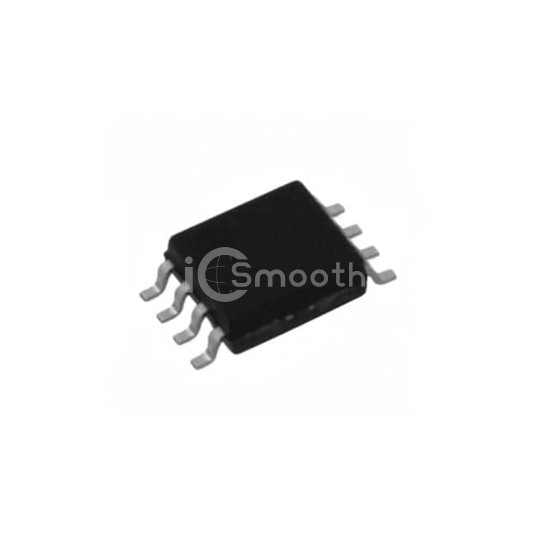

Name: IRF8327STRPBF
Brand: Infineon Technologies
SKU: IRF8327STRPBF
Price: 0.89 USD
Availability: InStock

REF: IRF8327STRPBF Infineon Technologies

IRF8327STRPBF

Infineon Technologies

MOSFET N-CH 30V 14A DIRECTFET

IRF8327STRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 14A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric SQ.

Datasheet Request a Quote

In Stock: 9,252

Specifications

17 parameters

Product Status	Last Time Buy
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.3mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	2.4V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1430 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 42W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ SQ
Package / Case	DirectFET™ Isometric SQ
