Name: IRF7946TR1PBF
Brand: Infineon Technologies
SKU: IRF7946TR1PBF
Availability: InStock

REF: IRF7946TR1PBF Infineon Technologies

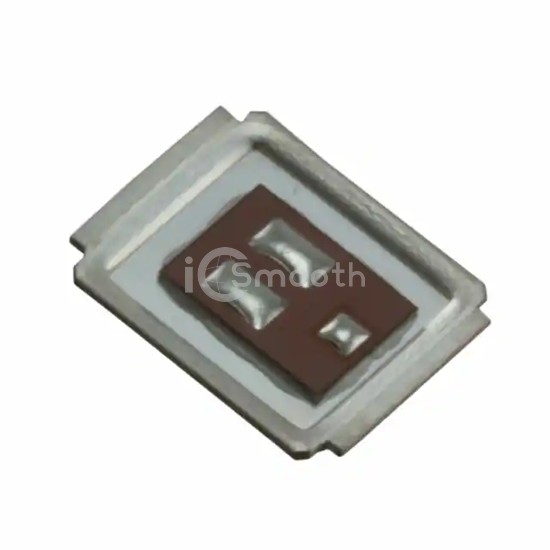

IRF7946TR1PBF

MOSFET N CH 40V 90A DIRECTFET MX

IRF7946TR1PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N CH 40V 90A DIRECTFET MX. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DirectFET™ Isometric MX.

Datasheet Request a Quote

In Stock: 7,557

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	3.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	212 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6852 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ MX
Package / Case	DirectFET™ Isometric MX
