Name: IRF7748L1TRPBF
Brand: Infineon Technologies
SKU: IRF7748L1TRPBF
Price: 3.08 USD
Availability: InStock

REF: IRF7748L1TRPBF Infineon Technologies

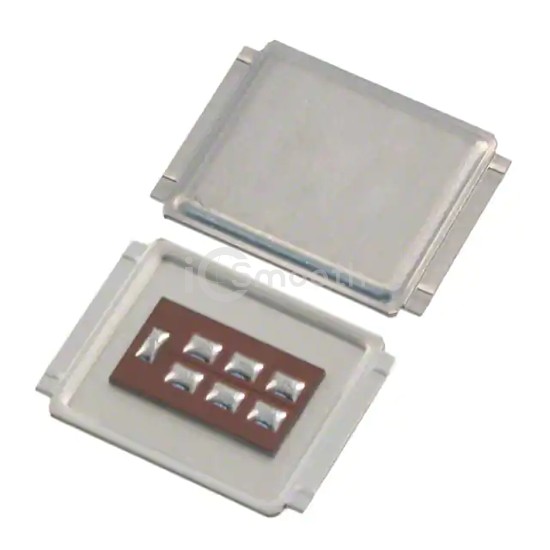

IRF7748L1TRPBF

Infineon Technologies

MOSFET N-CH 60V 28A DIRECTFET

IRF7748L1TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 28A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric L6.

Datasheet Request a Quote

In Stock: 4,388

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	28A (Ta), 148A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.2mOhm @ 89A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	220 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8075 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 94W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET L6
Package / Case	DirectFET™ Isometric L6
