Name: IRF6811STRPBF
Brand: Infineon Technologies
SKU: IRF6811STRPBF
Availability: InStock

REF: IRF6811STRPBF Infineon Technologies

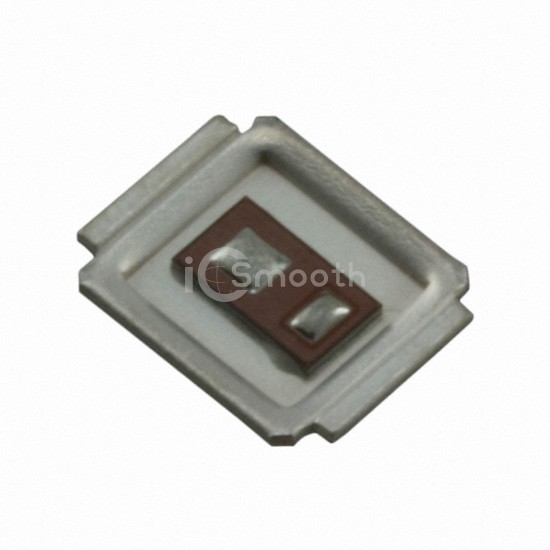

IRF6811STRPBF

MOSFET N CH 25V 19A DIRECTFET

IRF6811STRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N CH 25V 19A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric SQ.

Datasheet Request a Quote

In Stock: 1,461

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	19A (Ta), 74A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.7mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	2.1V @ 35µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1590 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 32W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ SQ
Package / Case	DirectFET™ Isometric SQ
