Name: IRF6810STR1PBF
Brand: Infineon Technologies
SKU: IRF6810STR1PBF
Availability: InStock

REF: IRF6810STR1PBF Infineon Technologies

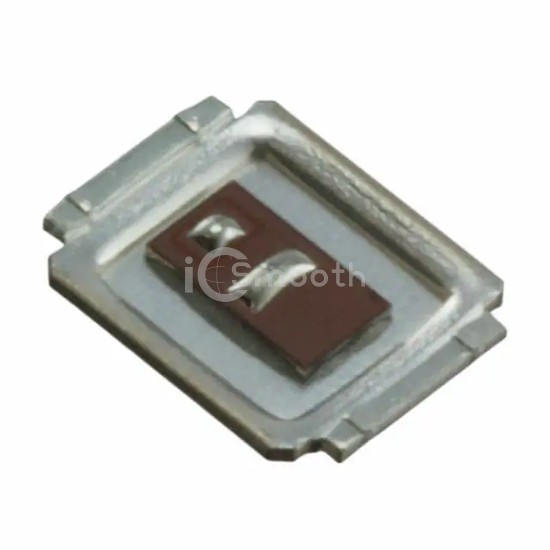

IRF6810STR1PBF

MOSFET N CH 25V 16A S1

IRF6810STR1PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N CH 25V 16A S1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric S1.

Datasheet Request a Quote

In Stock: 9,734

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	16A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.2mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	2.1V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1038 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 20W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric S1
Package / Case	DirectFET™ Isometric S1
