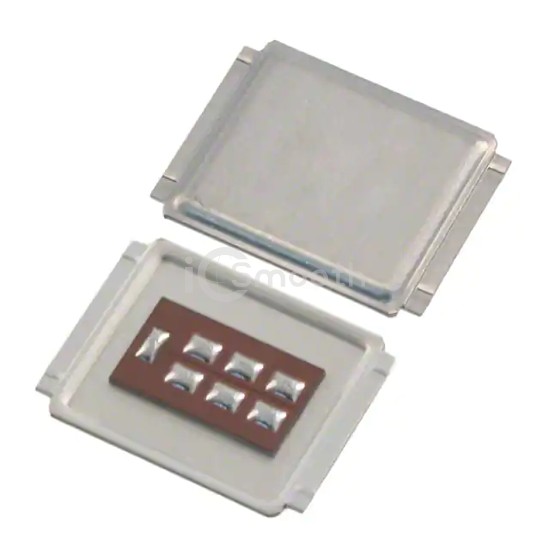

Name: IRF6718L2TR1PBF
Brand: Infineon Technologies
SKU: IRF6718L2TR1PBF
Availability: InStock

REF: IRF6718L2TR1PBF Infineon Technologies

IRF6718L2TR1PBF

MOSFET N-CH 25V 61A DIRECTFET

IRF6718L2TR1PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 25V 61A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric L6.

Datasheet Request a Quote

In Stock: 1,688

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	61A (Ta), 270A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.7mOhm @ 61A, 10V
Vgs(th) (Max) @ Id	2.35V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	96 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6500 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	4.3W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET L6
Package / Case	DirectFET™ Isometric L6
