Name: IRF6713STR1PBF
Brand: Infineon Technologies
SKU: IRF6713STR1PBF
Availability: InStock

REF: IRF6713STR1PBF Infineon Technologies

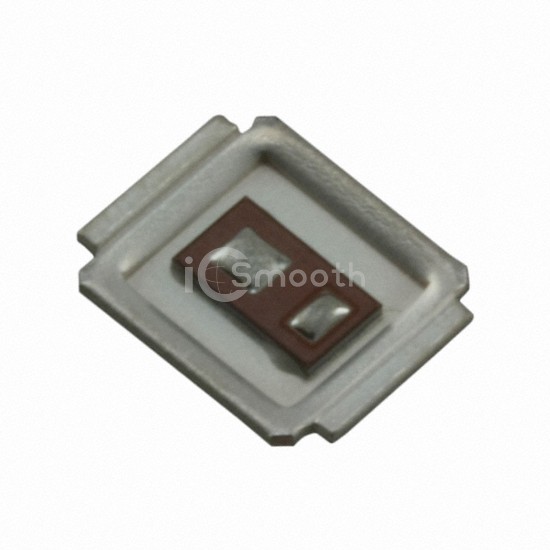

IRF6713STR1PBF

MOSFET N-CH 25V 22A DIRECTFET

IRF6713STR1PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 25V 22A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric SQ.

Datasheet Request a Quote

In Stock: 5,229

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 95A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	2.4V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2880 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 42W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ SQ
Package / Case	DirectFET™ Isometric SQ
