Name: IRF6708S2TRPBF
Brand: Infineon Technologies
SKU: IRF6708S2TRPBF
Availability: InStock

REF: IRF6708S2TRPBF Infineon Technologies

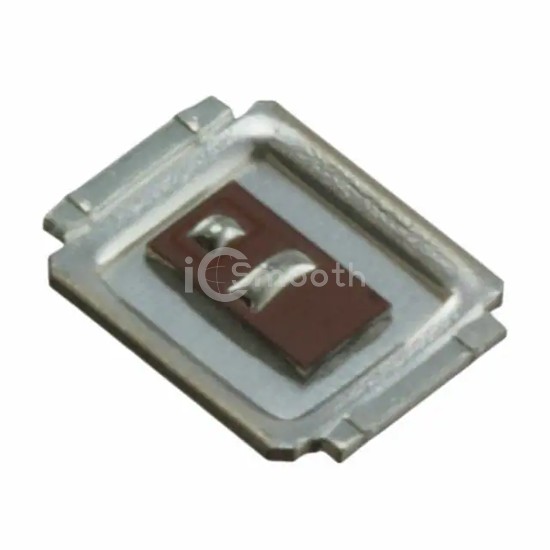

IRF6708S2TRPBF

MOSFET N-CH 30V 13A DIRECTFET S1

IRF6708S2TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 13A DIRECTFET S1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DirectFET™ Isometric S1.

Datasheet Request a Quote

In Stock: 1,723

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1010 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 20W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric S1
Package / Case	DirectFET™ Isometric S1
