Name: IRF6655TRPBF
Brand: Infineon Technologies
SKU: IRF6655TRPBF
Availability: InStock

REF: IRF6655TRPBF Infineon Technologies

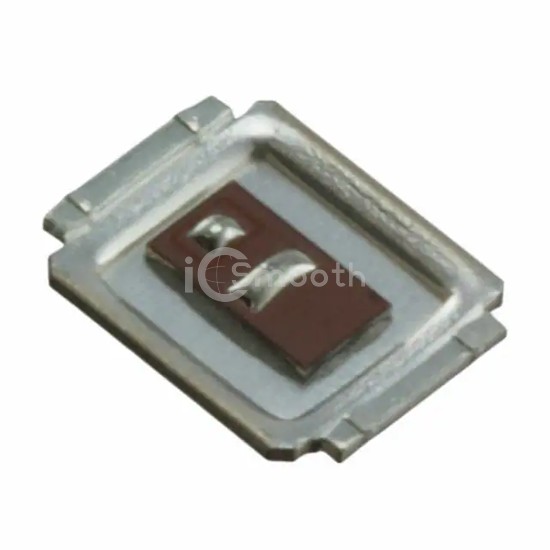

IRF6655TRPBF

MOSFET N-CH 100V 4.2A DIRECTFET

IRF6655TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 4.2A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric SH.

Datasheet Request a Quote

In Stock: 1,445

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	4.2A (Ta), 19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	62mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4.8V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	11.7 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	530 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 42W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ SH
Package / Case	DirectFET™ Isometric SH
