Name: IRF60DM206
Brand: Infineon Technologies
SKU: IRF60DM206
Price: 3.18 USD
Availability: InStock

REF: IRF60DM206 Infineon Technologies

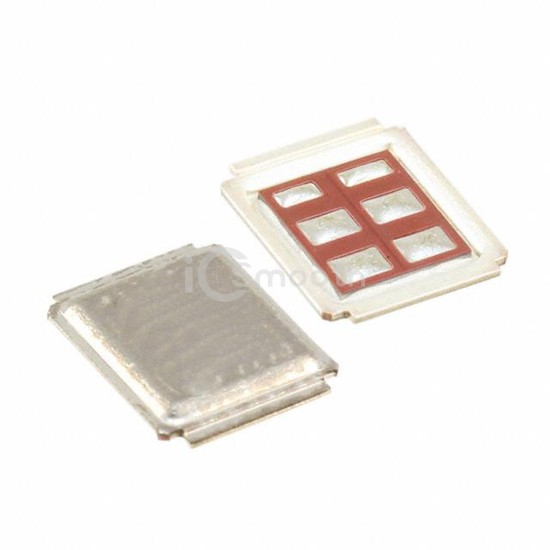

IRF60DM206

MOSFET N-CH 60V 130A DIRECTFET

IRF60DM206 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 130A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DirectFET™ Isometric ME.

Datasheet Request a Quote

In Stock: 4,969

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	2.9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	3.7V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	200 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6530 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric ME
Package / Case	DirectFET™ Isometric ME
