Name: IRF40SC240ARMA1
Brand: Infineon Technologies
SKU: IRF40SC240ARMA1
Price: 4.59 USD
Availability: InStock

REF: IRF40SC240ARMA1 Infineon Technologies

IRF40SC240ARMA1

Infineon Technologies

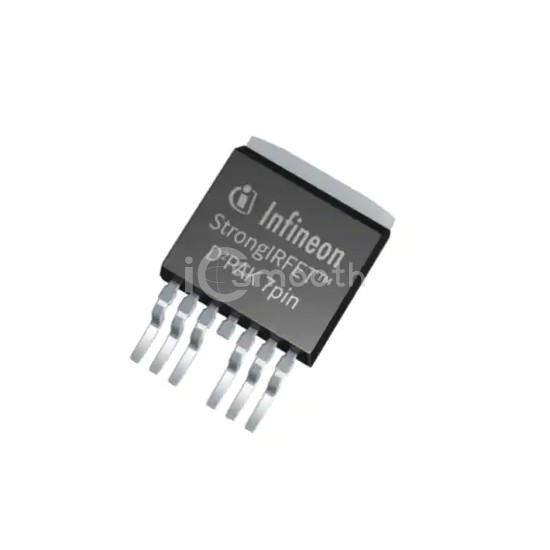

MOSFET N-CH 40V 360A TO263-7

IRF40SC240ARMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 360A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 8,166

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	360A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	0.65mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	458 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	18000 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 417W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
