Name: IRF40DM229
Brand: Infineon Technologies
SKU: IRF40DM229
Price: 2.46 USD
Availability: InStock

REF: IRF40DM229 Infineon Technologies

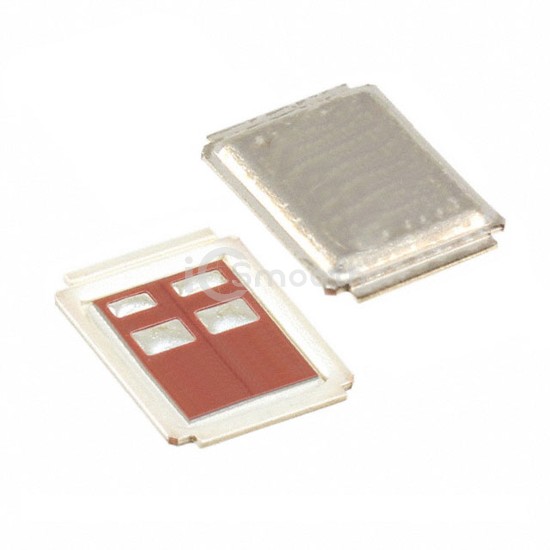

IRF40DM229

MOSFET N-CH 40V 159A DIRECTFET

IRF40DM229 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 159A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DirectFET™ Isometric MF.

Datasheet Request a Quote

In Stock: 4

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	159A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.85mOhm @ 97A, 10V
Vgs(th) (Max) @ Id	3.9V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	161 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5317 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric MF
Package / Case	DirectFET™ Isometric MF
