Name: IRF1405ZL-7PPBF
Brand: Infineon Technologies
SKU: IRF1405ZL-7PPBF
Availability: InStock

REF: IRF1405ZL-7PPBF Infineon Technologies

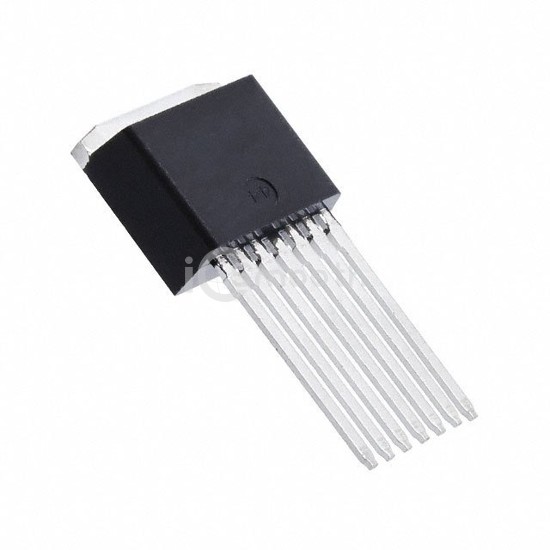

IRF1405ZL-7PPBF

MOSFET N-CH 55V 120A TO263CA-7

IRF1405ZL-7PPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 55V 120A TO263CA-7. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7 (Straight Leads).

Datasheet Request a Quote

In Stock: 7,353

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.9mOhm @ 88A, 10V
Vgs(th) (Max) @ Id	4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	230 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5360 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	230W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-263CA-7
Package / Case	TO-263-7 (Straight Leads)
