IR3101

In Stock: 3,589

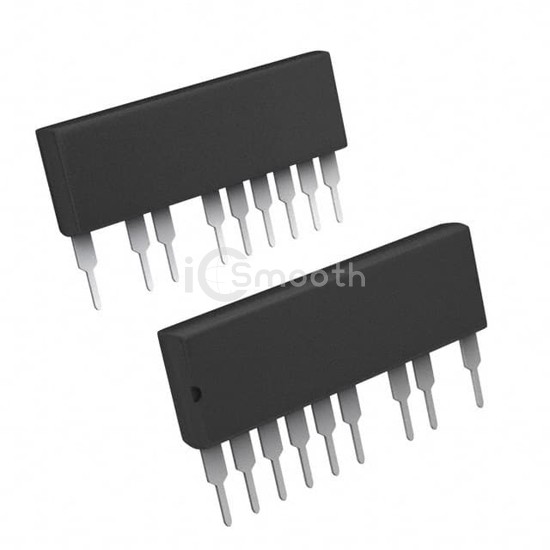

IR3101 - Infineon Technologies - PMIC - Gate Drivers
REF: IR3101 Infineon Technologies
IR3101

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 11SIP

IR3101 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 11SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 11-SIP, 9 Leads.

Datasheet Request a Quote

In Stock: 3,589

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.9V
Current - Peak Output (Source, Sink)-
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)500 V
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case11-SIP, 9 Leads
Supplier Device Package11-SIP
