IR2302S

In Stock: 2,766
IR2302S - Infineon Technologies - PMIC - Gate Drivers
REF: IR2302S Infineon Technologies
IR2302S

Infineon Technologies

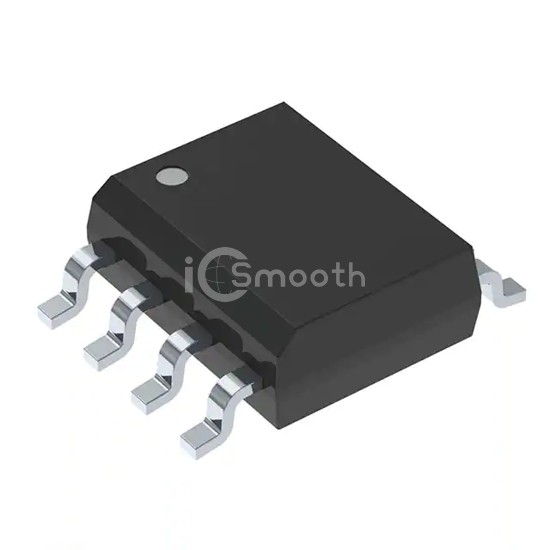

IC GATE DRVR HALF-BRIDGE 8SOIC

IR2302S is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,766

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply5V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.9V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)130ns, 50ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
