IR22381QPBF

In Stock: 5,395

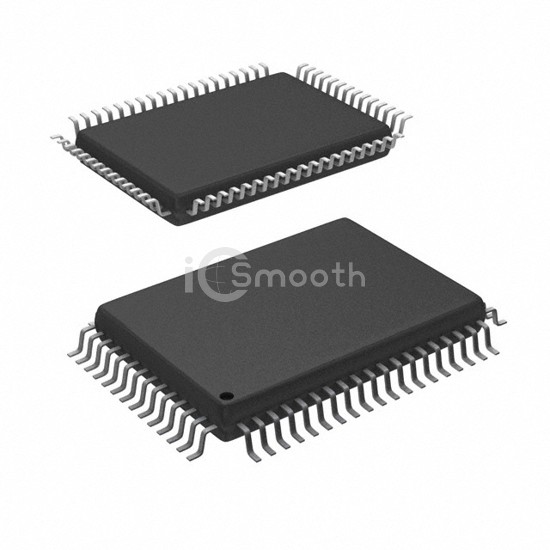

IR22381QPBF - Infineon Technologies - PMIC - Gate Drivers
REF: IR22381QPBF Infineon Technologies
IR22381QPBF

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 64MQFP

IR22381QPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 64MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 12.5V ~ 20V, package / case 64-BQFP.

Datasheet Request a Quote

In Stock: 5,395

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT
Voltage - Supply12.5V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)350mA, 540mA
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)1200 V
Rise / Fall Time (Typ)80ns, 25ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case64-BQFP
Supplier Device Package64-MQFP (20x14)
