IR2137Q

In Stock: 1,079

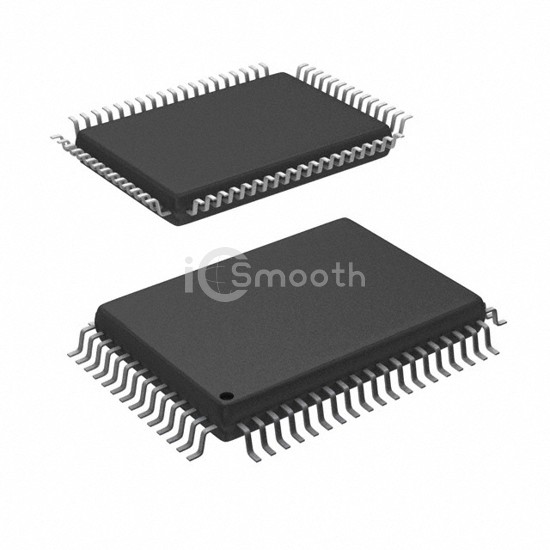

IR2137Q - Infineon Technologies - PMIC - Gate Drivers
REF: IR2137Q Infineon Technologies
IR2137Q

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 64MQFP

IR2137Q is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 64MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12.5V ~ 20V, package / case 64-BQFP.

Datasheet Request a Quote

In Stock: 1,079

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers3
Gate TypeIGBT
Voltage - Supply12.5V ~ 20V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)-
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)115ns, 25ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case64-BQFP
Supplier Device Package64-MQFP (20x14)
