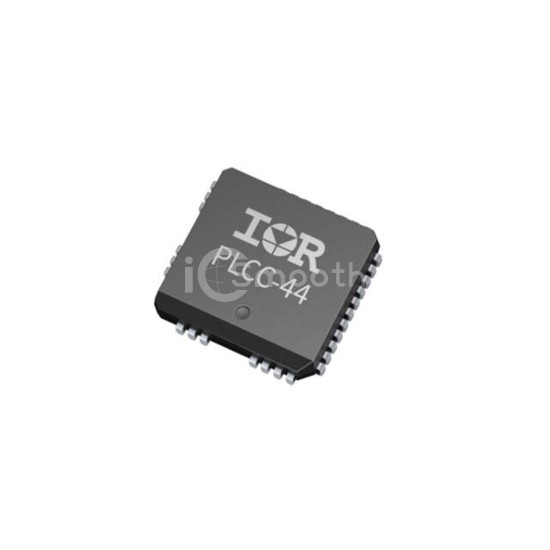

IR2137J

In Stock: 6,869
IR2137J - Infineon Technologies - PMIC - Gate Drivers
REF: IR2137J Infineon Technologies
IR2137J

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 68PLCC

IR2137J is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 68PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12.5V ~ 20V, package / case 68-PLCC.

Datasheet Request a Quote

In Stock: 6,869

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers3
Gate TypeIGBT
Voltage - Supply12.5V ~ 20V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)-
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)115ns, 25ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case68-PLCC
Supplier Device Package68-PLCC (24.23x24.23)
